Truthfully, only the Titan X family is currently able to make fun of the 4K resolution.
Due to AMD's current flagship graphics card Vega family is absent. The polaris family of mid-range graphics cards has become AMD's strongest graphics card. In the P10 family, the highest capacity is the RX 580 8G. In fact, it is a game card with 1440P (2.5K resolution).
Whether it is the new GTX 1060 series or the RX 580 series. 4K resolution is a nightmare difficulty for them. However, everyone has seen more of the various shows of the RX 580 series. So, today we have to look at the next, the mainstream mainstream graphics card, whether in 4K resolution, smooth game play?
Display
â–² Landlord This monitor is LV243WUP, a 24-inch 4K monitor, last year's 618 special 1299 into. In fact, personal feeling is not practical .... so behind the landlord in the double 11, and bought a 27 inch 1080P LV 273HIP monitor, as daily use. After all, for the average person, the viewing area is more important than the resolution.
XFX RX 580 8G Evolution 1405MHz/8GHz-1425MHz/8.1GHz 256bit GDDR5 Graphics 1999 Yuan Jingdong Direct Link
â–² XFX (XFX) RX 580 8G Black Wolf Evolution. It can be said that the RX 480 8G patch upgrade. For now, the RX 580 8G can be said to be the mainstream mainstream performance and capacity of the graphics card. (The GTX 1070 and Vega graphics cards are either dessert grade or flagship.)
XFX graphics packaging really impressive .....
â–² Accessories A basket can cover the entire table. There are two sets of large 4D to 6pin/8pin power supply line ... ... which manufacturers say more than 450w power so annihilation 8 + 6pin, let me open my eyes.
â–² Dual fan cooling is basically the standard graphics card. XFX's RX 580 8G graphics card is slightly longer in terms of length. Whether it is the RX 480 8G or the RX 580 8G, the entire graphics card will be larger, longer and heavier than the 480 4G and 470 series, and the PCB will be longer.
â–² The backboard is also longer, forming full coverage with the heat sink.
â–² There is an XFX logo light on the top and it is red after it is lit. Powered by an 8-pin + 6-pin external graphics card - you can reduce or even remove power from the PCI-E slot on the motherboard.
â–² display output interface with dust cover design, there are three DP, one HDMI DVI interface.
▲ Red light is emitted when both fans are operating. A feature of the Black Wolf's evolutionary version of the RX580 is that the disassembly of the graphics card fan will be very simple—two snaps and one press. Ashing becomes very easy.
â–² Two fans are red LEDs, and other color LED fans can also be replaced.
Kingston UV400 Series 240G SATA3 Solid State Drive 599 yuan Jingdong direct link
â–² SSD uses Kingston's UV 400 240G, which is currently commercially available SSD. I saw that Jingdong had 12,000 people to buy it, so it was easy to follow the design of the UV400.
â–² ultra-thin 7MM thickness. Well, ready to install the test.
Installed
â–² The motherboard is the Asus Z170-A. Although the price of Asus is slightly higher, his BIOS is the best in the industry. Many locations are still very reasonable. Load the CPU, apply grease, and install it in the heat sink.
â–² Mount the heat sink, memory, and prepare the SSD, HDD, ready to be loaded into an open platform.
▲ The power supply uses XFX's gold power supply – the XTR 750w. Individuals still prefer this series of power supply.
â–² The module line adopts the black and white silver plated module line customized by my third party. The wire is slightly stiffer.
â–² Put all these things into an open platform. Because the module line is too rigid, it is not easy to concave shape, and the open platform has no room for picking up and line management. Let's take a look.
â–² Move the open platform to the side, do not block my monitor ..... put on a 4K monitor, connect all kinds of lines, power on, boot! It can be seen that the fan of RX 580 8G Black Wolf evolved red light, which echoes with the top LOGO light.
What? Orange? The long red light shutter time will turn orange.
â–² Not that I always use that angle, mainly this angle.... Not as good as that angle....though some people may like this angle.
â–² True red LED is also. The blue LED indicator lights up when the external power connector is powered on.
â–² configuration
Basic test
â–² 3Dmark's Fire Strike mode is the result of 1080P resolution. The final score is 11570.
â–²Fire Strike Extreme mode is the result of the 1440P (2.5K) resolution, which is a resolution that closely matches the RX 580 8g. Score 5706 points.
â–²Ultra mode is a 4K resolution test, so many graphics cards are not expressive at this resolution.
â–²Time Spy is a new mode test for DX12, with a resolution of 1440p (2.5K). Time Spy mode actually eats CPU..
â–² VRmark orange room test score of 7262 points
â–² Steam VR test average fidelity 7.2
â–² DiskInfo correctly identified the Kingston UV400 240g. It is not possible to recognize the total amount of writing and reading.
â–² It can be seen that the transmission speed of Kingston UV400 240g basically reaches the limit of SATA transmission speed. In the course of playing games these days, it also feels stable. It can be said that there is no difference between SSD and PC/notebook. It is heaven and hell.
The game's 4K resolution is measured
â–² Let's look at the 3A masterpiece first - come to Kuntt. Let's see the Wizard 3. Turn on 4K resolution and get all special effects high. (In fact, the landlord also got the highest)
â–² High effects at 4k resolution. The FPS is about 35~36, and the special high effect is about 30~32 FPS. If the enemies or scenes have more NPCs, FPS will certainly decline.

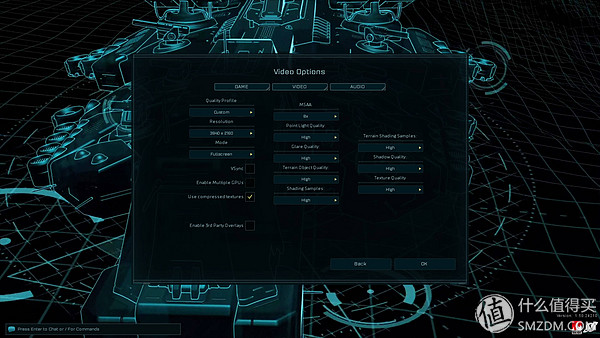

â–² DX12 game pioneer singularity ashes. Open 4K resolution, all special effects into high effects, run a look at the benchmark.
The result is probably around 42.9 FPS. In terms of results, it is playable, but if you really want to play fluently, it is still best to play in 1440P resolution.
â–² Forever Young beautiful Laura's Tomb Raider 10 rises. In DX12 mode, FXAA is turned on, double buffering, and all remaining effects go to maximum. Let's take a look at the results of the benchmark test.
â–² Laura's sister and RX580 8G's 4K trip feels a little uncomfortable. It seems that if you want to be happy with Laura's elder sister, it is best to walk on the 2.5k road.
â–²What is the performance of the legendary next round at 4K resolution and the highest special effects? In fact, it reflects a reality from the map - 4K resolution is really only suitable for oversized displays - it is expected to be 48 inches to 54 inches.
â–² Read the upcoming 348 round record and pull the perspective up to the highest! There is a sense of God's perspective at this time. The upper right corner of the 4K resolution technology and policy research frame is very small, this time the lowest frame rate - 40fps. Ordinary FPS will be more than this. 2.5K resolution and 1080P are more than 60FPS, and very smooth.
â–² As for the killer 6, 4K resolution is 35.33 FPS, if you want to play smoothly, it is best to use 1440P with 1080P
â–²Through the above games, point of view, 4K resolution is still the hardware killer resolution, 4K resolution is far away from the average player far, and 4K display is also slightly expensive ~~~~~~. The RX 580 8g can play with the game on the 1440P with great effects/highest special effects.
Write last 4K resolution and 4K display popularity still have a long way to go
For the average player, the viewing area is more important than the resolution. So the 24/27 inch 1080p display 32 inch 2.5K display is a relatively reasonable resolution and size matching display.
The current mainstream resolution is still 1080P, 1440p (2.5k) is still on the way
RX580 8G is still good to talk about it with 1080p / 1440p
