Why do you want to start the computer from the part?:
I, as a hobby assessment researcher, belonged to the series of poverty before falling in love with Auntie. Buying a computer can only look at the price/performance ratio. From the freshman year to the senior year, you use Acer. You asked me why I didn't want to go on a ship of God. Well, it's not a bit worried about quality.
#My History of Laptop Evolution #My Love and Hatred (Attachment Machine Artifact) on Acer laptops Before I graduated from high school, there was no computer in my family, my parents gave up my fiber, and television didn't let me see everything. In order to learn, but witty of my primary school to sneak into the black Internet cafes to play games, it is really a period of nostalgia. Until the summer of high school graduation, I only had my first computer in my life, because my parents’ budget was limited (about 4,000 softcoins), and the same price Lenovo ASUS graphics cards were GT520M and below, you let Geek study僧 | Like 23 Comments 70 Favorites69View details Originally a plan to change a computer for three years, after starting to write the evaluation, in addition to the occasional LOL and CS·GO, there is an additional need for retouching and video. Acer EX2511G Although the 4G memory GPU (GT940M) can take advantage of, but the performance of the low-voltage CPU (i5-5200U) slightly less, especially when using Lightroom for picture management and change the picture becomes powerless, more Caton. When the video is rendered, the CPU directly soars to a utilization rate of about 90%. Basically, it cannot do anything else.
Thus, the intention of taking the opportunity to slowly germinate in the bottom of my heart. When the big time period, the family installed a 3,000 yuan host, DIY can not run. However, for computers of this type, for me, this kind of “poor†study, the break-up of parts into parts is considered to be a large consumer, and it is obviously not realistic to purchase all the accessories in one step.
As for the white bars, I don't give diamond+Plus member dogs east. At least looking for customer service more than 5 times, trumpet seconds open, I am also very aggressive. The bitterness and tears here don't tell anyone else.
Find
Sony (SONY) ILCE-7M2 full-frame micro-single-lens long telephoto kit (24,300 effective pixels 24-240mm lens α7M2/a7M2Mark II) 12599 yuan value of friends broke the material: history low, ah, lower than the previous period of 13,498 yuan Nearly 1,000 yuan. Sony A7M2+24-240mm lens to take the world, in one step, what kind of bike! ! Coupons can be even lower, I have 2000-80, the order is 12,519 yuan! Geek Research 僧 | Value 17 Comments 26 Favorites 13 Direct Links View Details In addition to the recent weak performance of the Nikon D90, Dafa’s special offers swayed in front of my eyes and the plan to purchase a full-frame camera at the end of the year was also put on the agenda. DIY computers can only be implemented from parts. From.
Why do you want to start with the monitor?:
The original Acer EX2511G is a 15.6-inch screen, which is enough for playing games, but when the literature is used for academic review, only one page can be displayed. Unlike monitors such as motherboards, which cannot work alone, they can be used directly on laptops. This is also a key point.
1 screen resolution: The first consideration is the resolution: Considering the performance of the Acer EX2511G, it is estimated that both 1080P (1920×1080) and 2K (2560×1440) are acceptable, but this depends on the monitor's screen.
2 monitor screen: My initial plan is about 25-27 inches, and with a 2K, it's pretty good.
[actual purchase]:
The purchase budget is probably fluctuating over 1,500 yuan. After comprehensive considerations, the Dell U2417H and Dell P2416D have already been tangled. The two have never bargained for price, and the review area has actually appeared with a 1300 yuan bond price. The old driver, who did not move to a low price, naturally endured it.
domestic
Limited Members: DELL Dell U2417H 23.8 inches IPS LCD Monitor 1499 yuan 99% sRGB color gamut, ultra-narrow border on the four sides, and then to a good price. Jingdong member price of 1499 yuan, and then back to a good price ~ consumers in the purchase of home or office computer, when it comes to the monitor, DELL Dell is a brand can not be ignored. Among consumer-grade monitors, Dell has become a choice for many users because of its near-professional-grade color and much lower price than professional monitors. High value and service are also one aspect, in which the mainstream product end1ess| 112 Reviews 110 Collections84 Direct LinksView Details
DELL Dell P2416D 23.8 inch 2K LCD monitor 1438 yuan (need to use coupons) IPS panel, 99% sRGB wide color gamut, recent good price ~ Jingdong current specials to 1488 yuan shipping, but also from the page to receive 1000-50 coupons Actually paying 1,438 yuan to hand, it is now a good price to start with, and friends with large vouchers can do even lower. Dell P2416D with IPS panel, with a wide viewing angle of 178 degrees, screen resolution of 2560*1440, 99% of the color coverage, can be more accurate value of 57 Comments 56 Collections 69 Direct Links View Details Until Feb. 22, the AOC Q3277FQE monitor's special price was pushed, and it instantly stopped.
domestic
New low price: AOC Q3277FQE 32-inch 2K VA display 1599 yuan package 100% sRGB, 10bit color. Update: At present, this monitor can also use my monitor 1000-100 coupon to achieve 1599 yuan to hand ~ Jingdong specials to 1699 yuan, a new low-cost history. PS: No goods in North China. The AOCQ3277FQE uses a 32-inch VA panel and features a color display. This panel has a viewing angle of 178°/178° and a resolution of 2560×1440chromes|Value 95 Comments 199 Favorites 77 Direct Links View Details Screen 2K resolution, 32-inch screen should be okay (here pit), VA panel, DeltaE is less than 3,100% sRGB, known as 10bit parameters, is simply gorgeous ah, and then brush the credit card into the pit Now.
[section of popular science]:
â—†About VA Panel, Recommended Reading: Reveal the Mystery of All Panels of LCD TV
The VA panel is now a type of panel for high-end liquid crystal applications and belongs to a wide viewing angle panel. The feature of the VA panel is that the contrast of the front (front view) of the VA panel is the highest, but the uniformity of the screen is not good enough and color drift tends to occur. The sharp text is its killer and its black and white contrast is quite high. The VA panel also belongs to the soft screen. If you touch the panel with your finger, it will show the plum pattern.
◆About ΔE(Delta-E), Recommended reading: Baidu Encyclopedia
ΔE can quantify the accuracy of color reproduction to a value that accurately reflects the accuracy of the display's color. Therefore, the smaller the number, the better. The higher the score, the more distorted the color. The ΔE value is between 1.6 and 3.2. The human eye can hardly discern the difference in color. There are only a few professional-grade monitors, such as EIZO worth 10,000 yuan, NEC 2690WUXi and other models can do it; in the 3.2 to 6.5 People who have undergone professional training can discriminate the differences, but ordinary people cannot observe the differences. Normally professional-grade LCDs can meet this standard, and a few excellent consumer-grade LCDs can also enter this range.
â—† About sRGB, Recommended Reading: Which of the AdobeRGB and sRGB should I choose?
sRGB (standard Red Green Blue) is a color language protocol co-developed by Microsoft Imaging Corporation. Microsoft, in conjunction with Epson, HP Hewlett-Packard, etc., provides a standard way to define colors for display, printing, and scanning of various computer peripherals. And application software has a common language for color. The traditional display can only show about 97% of the sRGB color space, about 76% of the AdobeRGB color space.
Interestingly, biologically just like the rolling of color space, women can capture more color information than men.
Because there are two X chromosomes in the female body, correspondingly, these genes in the body are also double. The male body has only one X chromosome, so color blindness is more common in male populations. In addition, the double X chromosome also enhances women's ability to perceive the orange-red region of the spectrum. Therefore, to be exact, the world in the eyes of men and women is different and each has its own splendor, but the world in the eyes of women is more beautiful!
â—† About 10bit, Recommended reading: 10bit monitor: What ghost? Better picture quality?
Start with the simplest black and white color channel. From black to white, under 8bit we can see that the middle will go through 256 color segments, and this number will increase by 1024 under 10bit. The more color layers in the middle, we can easily imagine that the gradual transition from black to white will be more delicate and natural. If the bit depth is lower than 8bit, we may see obvious delamination in this transition. If you have a picture of a deep descent, you will see that the orange transition from the inside to the outside is not natural. This is because the color progression is not enough to reflect the delicate changes.
What is the use of 10bit? If you want to describe it in the most intuitive way, it can make the color appear more delicate gradual change, because the color level in each color channel is 256 by 8bit (at present, most of our display devices use 8bit, and even 6bit) suddenly soared to 1024. In this way, the color is naturally more delicate.
Since the gradient layering in the color channel will become more delicate, one can imagine that more types of colors can be presented under the 10bit. We always say that 8bit can present 16 million colors, because there are three primary colors of red, green and blue. The actual number of colors is 256 x 256?56. If you evolve to 10bit, simple calculations show that it can present more than 1 billion colors.
In the evaluation of past glory V9, a valued friend said that I had more than a hundred open-box drawings, which was too much. OK, this time I can always go to the video. Anyway, this value friend can't see it.
This time I took a time-lapse photography, and the size of the person (me) and the outer case of the monitor can tell that the 32-inch is really big!
â–¼ is not very big Yeah, when I received Jingdong express, the inner agitation, look aggressive, I wipe, this 32-inch is also unrestrained.
[Instructions]:
[product warranty certificate]:
ã€power cable】:
[HDMI cable]:

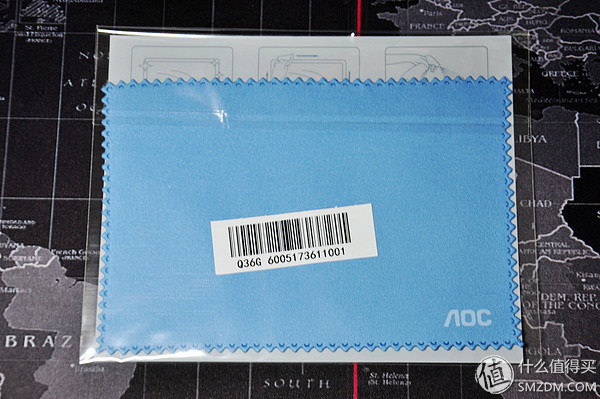

ã€Clean screen cloth】:
Although the front of the AOC Q3277FQE monitor is not an ultra-narrow frame, its value is still good. The bottom frame is silver metal brushed material, and the other three positions are the black plastic paint frame surfaces.
â–¼ On the right side of the bottom frame is the button section. From left to right are the source button, left button, right button, menu setting button, and switch button. By using different button combinations, the display parameter adjustment and source signal switching can be realized.
â–¼ On the left side of the bottom box, there are some key functions and interface support of the AOC Q3277FQE monitor.
â–¼ The base part adopts the silver wire drawing painting process. The actual experience is very general workmanship. There are many places at the bottom of the glitch.
3.2 back
â–¼ Compared to the positive face value, the back of the AOC Q3277FQE monitor is slightly shabby. The first major piece of the monitor should be the motherboard circuit.
â–¼The bracket is embedded in the middle of the back of the monitor. From the perspective of the surrounding four screw holes, it is necessary to support the subsequent refitting of the cantilever bracket. Afterwards, it is planned to use the public test to try one. After all, it can support a 32-inch cantilever bracket. Small 1000.
â–¼ There is a nameplate in the lower left corner of the monitor. The information on the product and the key serial number are printed on it. There is a corresponding QR code next to the serial number. When WeChat is bound to the device, it can be scanned.
[Interface Section]: The AOC Q3277FQE display provides DP (DisplayPort), D-Sub (commonly known as VGA), DVI-D (Dual Channel), HDMI (High Definition Multimedia Interface), and audio output interfaces, which are sufficient for various inputs. The only disadvantage of the signal connection is that no USB expansion port is provided, which increases the user's demand for a USB extension cable or a USB splitter.
â–¼ On the left is the power interface and switch. I see some users in JD.com's commentary area who can't get a bad rating because they can't open the machine. I also feel intoxicated.
Because my Acer EX2511G does not support the DP interface, you can only use VGA or HDMI. And the monitor's interface support affects the resolution: 1920x1080@60Hz (D-Sub), 2560x1440@60Hz (DVI-D (Dual Channels), HDMI/MHL, DP), so directly using the included HDMI to connect the laptop safe. After connection, 2K resolution without pressure conversion, simple text editing is not stuck, the video rendering and game process is rather miserable, Lightroom will be slightly stuck, so you need to fill in the host as soon as possible with this fat-filled display or Strong performance books, so you have to look forward to @ measured the small value of the future favor.
â–¼ Finally, there are dense openings on the top, right side, and lower left side of the raised part on the back. Visually applicable to heat dissipation.
3.3 side
The side of AOC Q3277FQE display is quite satisfactory, but the plastic material on the back makes the texture unsatisfactory, which is unsightly.
(1) Menu bar
â–¼AOC Q3277FQE The monitor menu has 6 options, but only 5 can be adjusted, namely brightness, color setting, window highlighting, OSD setting, and others.
[Brightness]: Mainly adjusts the contrast, brightness, and brightness modes.
[Color Setting]: The color setting is mainly to adjust the color temperature.
[Window highlighting]: Window highlighting is an enhancement to the screen display effect.
[OSD Settings]: The OSD settings are mainly the horizontal and vertical position adjustments of the display screen.
[Others]: Adjustment of some non-critical parameters.
(2) Signal source adjustment
â–¼ There are four signal source adjustments, depending on the connected cable. Since I use the included HDMI, I simply select the HDMI source.
4.2 Software Services
The AOC Q3277FQE monitor mentioned the extension software service in the flyer page. You can adjust the OSD menu through the i-Menu and quickly divide the screen by Screen+.
However, it does not provide relevant drivers for installation. It can only be obtained from related downloads on the AOC website.
(1) i-Menu
â–¼ i-Menu departure point is very user-friendly, without the use of physical button press, but can be adjusted by mouse plus software. However, in the actual experience, this is not the case. There are a total of eight options, only the last three can be adjusted, and the other five are virtually useless. I also managed to get in touch with the technical staff of AOC. The answer I got was really impossible to adjust. This is very painful. You have made publicity. I also have expectations, but in the end I can't use them. This psychological gap is really easy for consumers to get upset.
(2) Screen+
â–¼ Compared to i-Menu's Oolong, Screen+ is a true chapter and can be split into multiple screens by software.
â–¼ After installing the software, configure the split screen method. The available options are very rich. As a scientific dog, left and right split screens are the most common ones. This is one of the important reasons why I purchased large screen monitors.
â–¼ After completing the configuration, the screen will show "1|2" for left and right split screen, drag the corresponding window to the left and right interfaces.
▼ Like this kind of shopping on the left, the matching of the right academic is not the idea of ​​a thief.
4.3 After sales
â–¼The AOC Q3277FQE monitor provides a one-year warranty. After the registered member, the warranty period is increased to three years.
â–¼ First, through the AOC's WeChat public number, the AOC User Club.
â–¼ Register and bind to the product's serial number.
â–¼ The public number also provides the option of making an appointment for repairs by entering relevant information, but Jingdong's after-sales service is very perfect, so in the event of a problem, I would prefer to take the Jingdong after-sales channel.
4.4 fever situation
â–¼ AOC Q3277FQE The display has a good heat condition. According to the recording results of the infrared temperature gun, the front temperature is lower and the lower is higher.
▼ AOC Q3277FQE The back of the monitor is located on the back of the heat sink. The temperature on the upper left side is as high as 33.2°C and the temperature on the right side is the lowest, only 19.2°C.
The AOC Q3277FQE monitor has a resolution of 2560x1440. My glory V9 is also this standard, but the screen is only 5.7 inches. Perhaps valued friends will worry about whether they will have a grainy impression. In fact, there is no need to worry because there is an important indicator that has been affecting the human eye's visual perception on the screen. That is distance. The 32-inch screen is at least 2m in distance from the TV standard, but according to the standard of the computer monitor, 0.8m-1.2m is enough. However, my desktop is controlled at a distance of about 70cm. It really does look great. However, the actual experience is completely grainy, and it is still a very fine experience.
â–¼ To illustrate this experience, I chose the MacBook Air 13.3's screen (1440 x 900 resolution) for comparison. From the ppi calculations, the MacBook Air is superior to the AOC Q3277FQE in terms of data.
â–¼ However, in terms of actual results, I chose to display a picture of the same size, and then intercepted a part of the same size for comparison. The comparison result is obvious. When viewing the pictures of the same size area, the AOC Q3277FQE has a larger screen, a longer viewing distance, more covered pixels, and an advantage in definition.
5.2 Display Effect Test
ã€color】:
[Grayscale]: Due to the poor resolving power of the D90, the effect of shooting is not ideal. The actual feeling is different. Although it is not at all extreme, it can be a finalist.
5.3 viewing angle
â–¼As the AOC Q3277FQE monitor uses a VA screen, the theoretical viewing angle will be weaker than the IPS panel. I think the most important problem is chromatic aberration. When viewed from the center, the color is the fullest, and when viewed from other angles, The picture is slightly whitish and the effect is weakened.
5.4 screen display contrast
During the comparison, the AOC Q3277FQE monitor turns on the sRGB color temperature mode, other options are preset, and the MacBook Air is the default setting.
(1) Comparison of colors
The yin and yang screen, bright spot, bad spot detection scope of application: This page is a test screen test page, suitable for computer, ipad and other tablet computers and mobile phone screen, bad point, bright spot test, yin and yang screen test. Test method: Open this page with the browser of the device under test, and pull down this page to check the bad/light/dark spot/screen light leakage/yin/yang screen. Suppose you see a white dot or line in the all-black case (you need to look closely, but of course not the best), then there are bright spots. If you see the black dots in the all white case, there are either dead pixels or dark dots. Please check it yourself. What is a yin and yang screen? The yin and yang screen refers to the non-uniformity of the screen when the film is coated, resulting in uneven display and yellowish appearance, which is particularly noticeable when displaying white. Test for light leaks. Without the lights, see the screen edge is a display.bbgxzx.com direct link â–¼ The color contrast is mainly to see if there is any color cast. Because the MacBook Air is filmed (became a mirror), the reflective condition appears when displaying some colors (such as black).
â–¼ The difference between white and black is not too obvious, green, yellow and red, AOC Q3277FQE darker.
â–¼ After the last multi-color mix and match, MacBook Air can not display all, it seems that the big screen also has certain advantages.
(2) Afterimage test
[Original] screen after-image online test screen online test page, afterimage is refers to stay in a page for a long time after switching the page or there will be a shadow on the current page. Mainly used for computer monitors, tablet ipad, mobile phone iphone and other tests, simple and convenient direct link â–¼ Screen burn-in test With the aid of a web version of the tool, maximize the window on black and white pages, keep the checker pages for ten minutes, and switch to gray. Grids will be displayed on the gray grid. This shows that there is a ghosting problem on the screen.
â–¼ After 10 minutes of waiting, the test results show that there are no obvious afterimages and they are commendable.
(3) Comparison of Sample Images
After comparing the samples, does it mean that 13.3 inches is really a petty family, 32 inches is enough to domineering.
â–¼ The previous resolution comparison is taken from the center corner of this picture. In short, the big screen is cool!
â–¼ If I say that the original intention of buying a big screen is to learn, I later discovered that watching videos is also cool. The 4K time-lapse photographic sample was played and matched with my little prince, it was an enjoyment. The 4K video that was originally recorded with Glory V9 was transformed into a super clear version of Youku, and everyone will also Just look at it.
Originally thinking about 940M dragging 2K games, not death. Then tried the next LOL, actually not very card, replaced with low quality, open the vertical synchronization, 60 frames / S is also like a duck. However, once I played 2 games, the computer went directly to a black screen and the shutdown steps were omitted. When I touched the vent, I was scared hot and I guess it was overheated. Once the ash was cleared, the temperature dropped.
â–¼ In the actual game test of LOL, I kept the resolution at 2K, the picture quality was adjusted to the medium-low standard and the vertical synchronization was turned on. From the video, 60 frames could be seen without stress, even if the team battle can do the job. However, in the future, a host is necessary, after all, 2K wants to eat, 10X0 series is essential.
(1) Advantages
The 132-inch screen is very large. It can provide a spectacular experience whether it is office or entertainment. The actual screen of 2K resolution is also very delicate.
2sRGB's full color gamut VA screen is very eye-catching and is very suitable as a retouching video viewer.
3 The interface of the monitor is complete, and it can basically meet all kinds of input and output requirements.
4Screen+'s split screen feature is very powerful and is ideal for academic research
5 The overall heat control is better, the front temperature is lower, and the temperature at the top of the upper vent hole is slightly higher.
The 6-year warranty plus on-site service is very conscience.
7 As a domestic monitor, the pricing of the product is very fair, the price is better, and the price is more
(2) Insufficient
1 The work of the product bracket base is general, and there are many places for glitches.
The 2VA screen performs well in terms of viewing angles. When viewed from the side, the image is slightly whitish.
3 The use of i-Menu in promotional papers is not valid.
4 The screen of the monitor is too large, and radiation is also increased. The recommended viewing distance needs to be about 0.8-1.2m, which has certain requirements for the width (depth) of the table.
52K resolution access to notebooks will degrade performance, especially when rendering video and large-scale games, thereby exacerbating the wear and tear of notebook devices. In other words, buying this monitor will require more potential upgrades in the future.
6 large-screen display also means greater power consumption.
7.2 Improvement Suggestions
1 Improve the workmanship of the bracket and the base part to improve quality control.
2 The function of i-Menu is improved and adjusted, and the parameters of the display are adjusted by the mouse + software.
7.3 Evaluation Conclusion
The optional display is a long time suffering, and finally after the Shen (red) heavy (dynamic) sieve (elimination) election (fee), anti-(vertical) complex (horse) é… (lower) stuffed (single), and finally the AOC Q3277FQE monitor I went back to the office. In short, after using it for half a month, it still feels very cool to me. Then every person who finds me changing the monitor has the following facial expressions.
If I let me choose again, the possibility of winning the AOC Q3277FQE monitor is still very high. After all, Hin is big and Hin is cool.
This assessment is not over. At the end of the day, my monitor has already been hungry and thirsty. I'm going to put the AOC Q3277FQE monitor on it.
Above, I'm Geek Research, a hobby graduate student.
